Electric Single Container Lifting Spreader
Classification:
Product Introduction
Electric Single Container Lifting Spreader
Model:ESS40ft_RHH_ER360°_FF4 name: electric single container retractable rotation lifting sling
- Suitable for 20 ft and 40 ft standard containers
- Retractable to 20 ft and 40 ft positions
- Can achieve 360°rotation
- All of the movements completed by the driving from the reduction motor
The size of the A/B is optional.
Model | ESS40ft_RHH_ER360°_FF4 | Rated load capacity | ≤41tons |
Net weight | 11.5tons | RLC of lifting ears | 4×10.5tons |

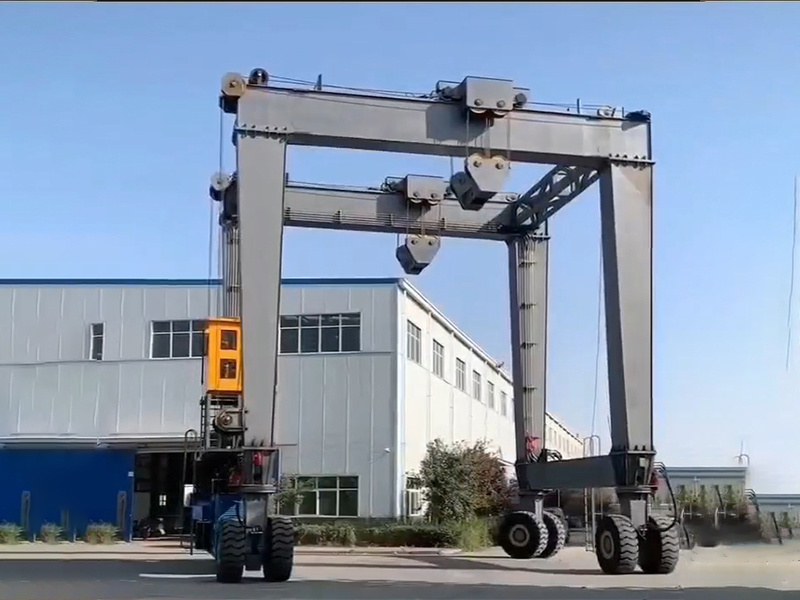

Applicable host | Rubber-Tyred Gantry Crane(RTG),Gantry crane | temperature | -20°～+60° |
Pivot Pin type： | ISO floating pivot pin ，driven by reduction motor | Open and close time | ～1s |
Retraction type： | Driven by motor, connected by roller chain | Retract time（20ft~40ft）: | ～22s |
Rotation angle | 360°（optional） | Rotation speed | 1r/min |
Rotation type | The rotating motor drives the slewing bearing to rotate | Permissible eccentric load range | ±10% |
Guide plate mechanism | Removable fixed guide plate（FF,optional） | Protection level | IP55 |
Power supply voltage /frequency | AC 380(3P)/50Hz | Control voltage | AC 220V(optional) |
Total power | ≤8KW | Max power consumption | 4KW |
